Can Thermal Imaging find a loose electrical connection?

Thermal Imaging can reveal unusual heat near a loose connection, but testing and physical inspection are needed to confirm the connection problem and its cause.

Does Thermal Imaging work through an electrical panel cover?

Thermal Imaging can show accessible surface patterns through some covers, but the cover material and viewing conditions affect the result. It cannot show the condition of hidden conductors.

Why can shiny metal affect an infrared image?

Shiny metal can reflect infrared energy from nearby objects, which may distort the apparent temperature. Technicians account for surface properties before interpreting the image.

Glossary

What Is Thermal Imaging?

Thermal Imaging is a noncontact inspection method that uses an infrared camera to display differences in surface temperature. Electrical professionals review these patterns to locate unusual heating at panels, breakers, terminals, conductors, and connected equipment. The method supports visual inspection and electrical testing, but it does not show hidden damage directly.

Quick Facts About Thermal Imaging

Key Takeaways About Thermal Imaging

Infrared cameras show surface heat patterns.
Unusual heat can guide closer electrical testing.
Thermal images do not reveal every hidden defect.

How Thermal Imaging Works

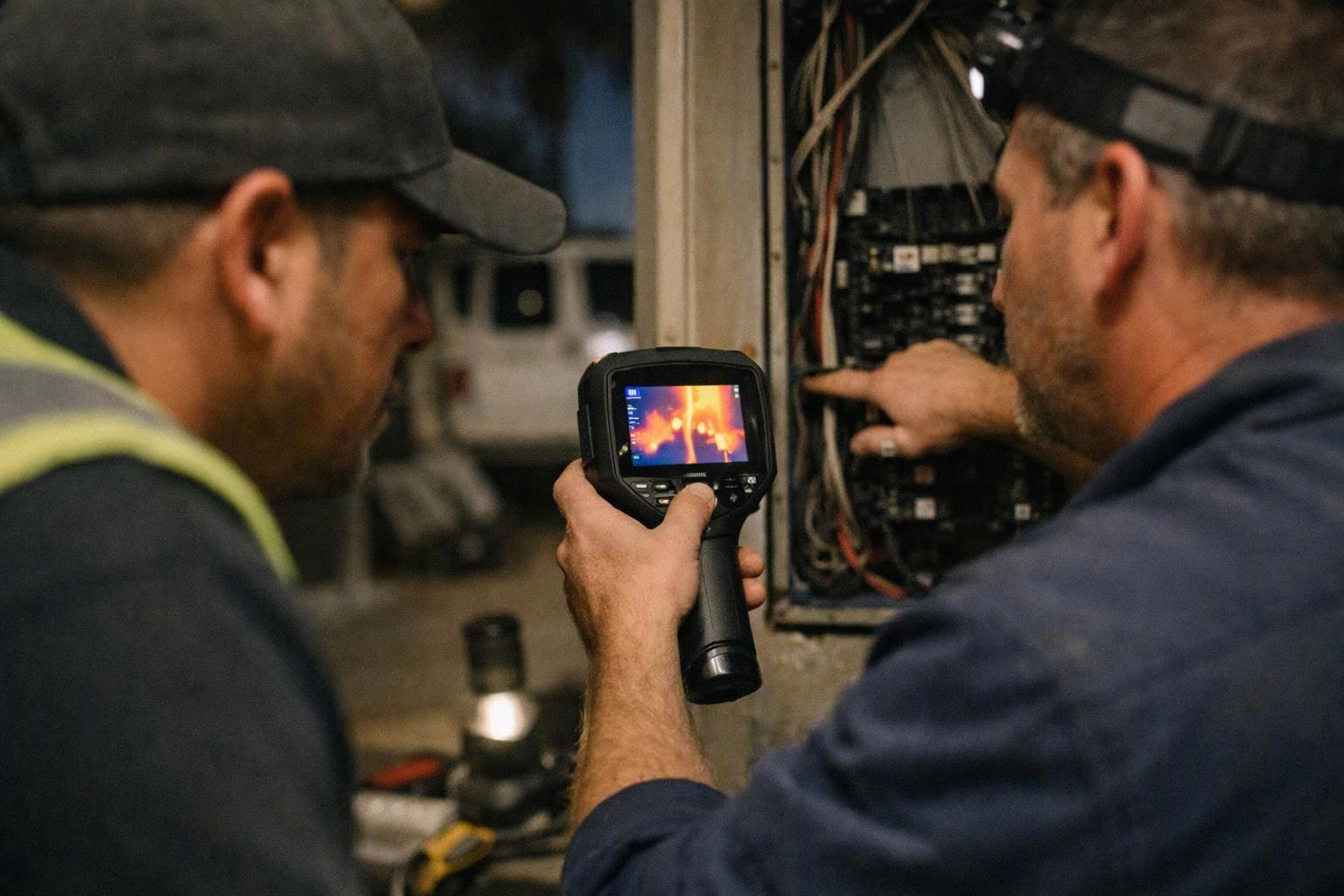

Two technicians inspect an open electrical panel, one holding a thermal camera and the other pointing at wiring

Thermal Imaging uses an infrared camera to sense radiation from exposed surfaces and convert temperature differences into a visible image. Electrical components that carry current can develop warmer areas when a connection has high resistance, a load is uneven, or a component is failing. The image shows patterns that deserve closer inspection.

Related glossary terms: Electrical Load, Current, Voltage Drop.

Technicians compare related components under similar operating conditions and consider the equipment design, ambient conditions, and surface material. Infrared cameras cannot see through walls, insulation, or equipment covers. A warm image does not identify the cause by itself, so the finding is reviewed with visual checks and electrical measurements. During an Electrical Safety Inspection, this method can help focus attention on panel connections, breakers, and accessible wiring.

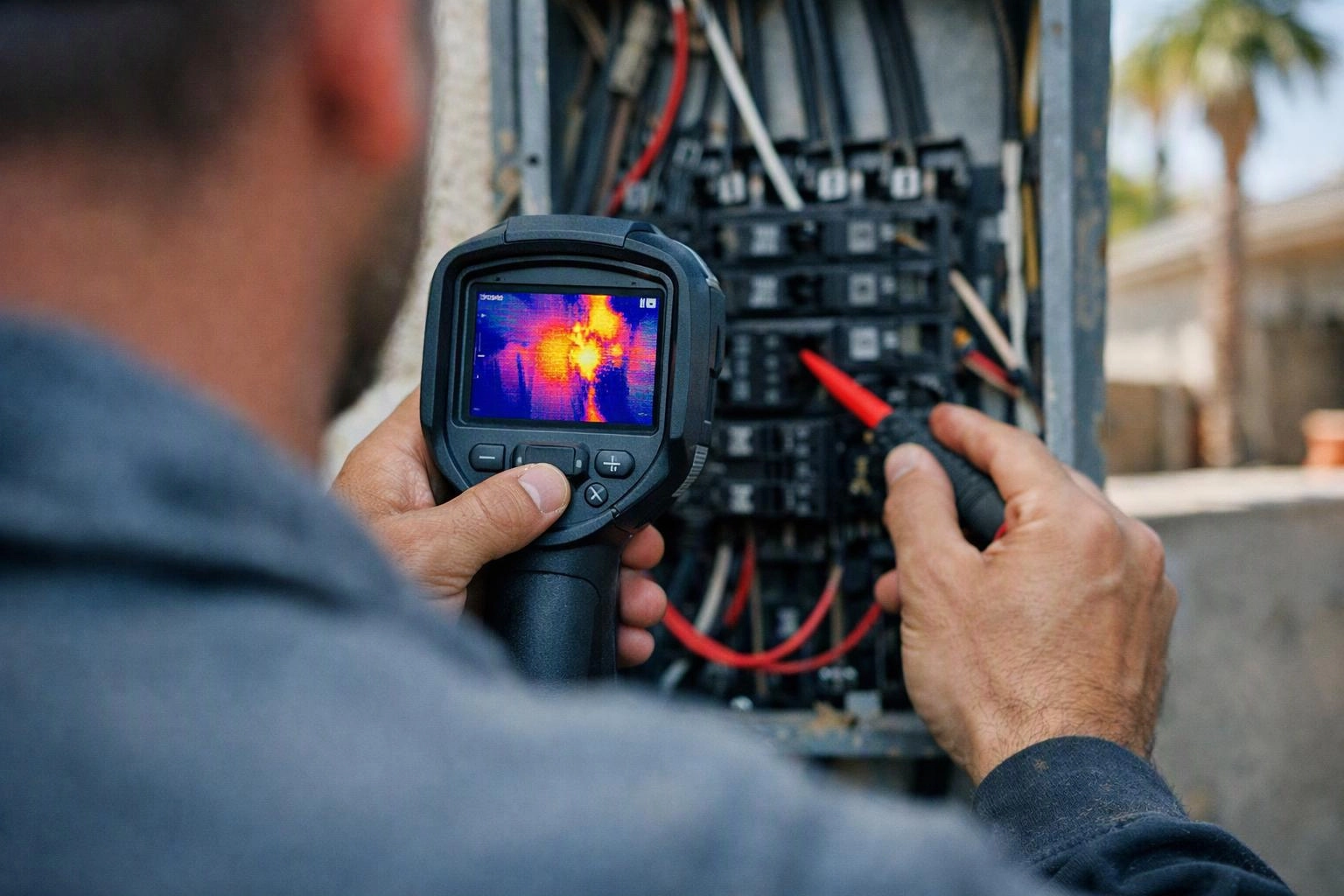

A person uses a thermal camera and probe to inspect wiring inside an open electrical panel outdoors

From the San Bernardino Electrician team

When we use Thermal Imaging during an Electrical Safety Inspection, we scan accessible equipment while the electrical system is operating normally. We compare related components and examine unusual patterns with visual inspection and appropriate testing. Our team treats the image as diagnostic evidence, not a final diagnosis.

Thermal Imaging in Practice: A Real-World Example

During an Electrical Safety Inspection, a thermal image of a panel may show one breaker connection warmer than nearby connections carrying a similar load. The technician then examines the connection and performs additional testing to identify the cause.
